Minelab

Go-Find 40 Manual

The Minelab Go-Find 40 metal detector is an affordable, compact, and easy-to-use entry-level treasure detector designed for first-timers of all ages, from children to seniors. It is a full-size, high-performance metal detector that folds up to a compact 22” and weighs only 2.2lbs, easily fitting into a small backpack or bag.

Ideal for a beginner (or as a backup detector), the Go-Find 40 features advanced Easy-Trak ground tracking technology that automatically detects salt and other minerals to minimize interference and false signals. With a new 10” waterproof search coil, it has the power and sensitivity to find coins, rings and other small treasures in a variety of environments.

Go-Find 40 Manual

Go-Find 40 Manual

Go-Find 60 Manual

The Minelab Go-Find 60 metal detector is an affordable, compact, and easy-to-use entry-level treasure detector designed for first-timers of all ages, from children to seniors. It is a full-size, high-performance metal detector that folds up to a compact 22” and weighs only 2.2lbs, easily fitting into a small backpack or bag.

Ideal for a beginner (or as a backup detector), the Go-Find 60 features advanced Easy-Trak ground tracking technology that automatically detects salt and other minerals to minimize interference and false signals. With a 10” waterproof search coil, it has the power and sensitivity to find coins, rings and other small treasures in a variety of environments. The Go-Find 60 includes a FREE digging tool, ear-buds and a smartphone holder in the box so you can get started right away.

Go-Find 60 Manual

Go-Find 60 Manual

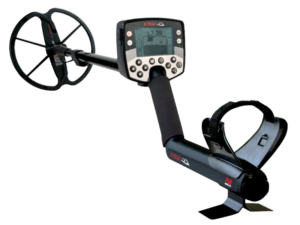

E-Trac Manual

The E-TRAC, with FBS technology, gives you superior detecting performance and 2D discrimination for precise target identification.

FBS Technology
Utilising FBS technology with simultaneous frequencies ranging from 1.5kHz – 100kHz the signal received from the detectors coil is analysed from a wide range of responses. This allows E-TRAC’s advanced signal processing to analyse more target information so that target identification is more accurate.

Smartfind Discrimination
A unique two-dimensional scale of discrimination graphically representing both the ferrous and conductivity properties on the same display working to eliminate signals from undesired targets and accepts signals from desired targets.
Discrimination scale with radical realignment improves target ID and the recovery rate of good targets at depth.

User Modes
Four pre-programmed Minelab user modes for switch on and go detecting with specific Settings and Patterns suited to Coins; High Trash; Beach and Relics.
Four user mode slots so you can personalise modes to suit your specific target preferences and detecting environment.

Ground Settings
Ground Setting options of Neutral and Difficult allowing you to adapt easily to benign or the most challenging operating conditions.

Trash Density
Trash Density settings – High ensures you experience fewer false signals in high trash environments while Low is perfect for cleaner sites.

Pinpoint Mode
Pinpoint with audio and visual indicators on two modes making target size and identification more accurate than ever.

Simple Interface
User-centered keypad and menu design – fast and easy to use with intuitive icons and logical menu sequences.
Clear resolution visual display panel 72mm x 48mm – designed for optimum visibility in all light conditions.

Quality Design
Ergonomic, perfectly balanced Handle Assembly ensures longer periods of detecting without fatigue!
Ultra-lightweight waterproof 11″ Double-D waterproof coil for versatility with sharp, accurate pinpointing and depth.

XChange Functionality
Create, download and upload your favourite E-TRAC settings and save them to your computer or exchange them with friends by email.

FBS (Full Band Spectrum) simultaneously transmits, receives and analyses a full band of multiple frequencies. This provides the detector’s electronics with even more information about a target and the surrounding environment than is possible with single frequency or BBS technology. This has a number of advantages, including:

High sensitivity across a wide range of target types and sizes, so you only have to cover the ground once.
Automatic sensitivity and ground compensation, so maximum depth is achieved even in mineralised ground, including salt water beaches.
Extremely accurate multi-channel signal conversion to precisely separate target signals from ground signals for maximum detection depth and high resolution target identification.
Smartfind two dimensional discrimination, giving you maximum target information, so that targets can be discriminated by both ferrous and conductive properties simultaneously

E-Trac Manual

Application Coin, Relic, Jewellery & Beach
Technology FBS, Smartfind
Frequency/Transmission Multiple frequencies: 1.5 – 100kHz
Coil (standard) 11″ Double-D lightweight, waterproof.Audio Output Internal speaker & 6.35mm ( 1/4″) headphone jack.
Headphones Supplied Koss 100 ohm headphones.
Visual Display Very large 72mm x 48mm (2.8″ x 1.9″) greyscale LCD with contrast adjustment.
Backlight Yes.
Product ID 754
USB Connectivity USB connector for communication with PC.
Memory Settings saved automatically while detecting and remain until changed or reset.
Depth Indication Accurate gauge active in normal detecting and Pinpoint mode.
Detect Modes 4 pre-programmed user Modes (Coins, High Trash, Beach and Relics) and 4 user customisable Modes.
Discrimination SmartfindTM 2 dimensional Discrimination: Ferrous 35, Conductivity 50. 10 discrimination patterns (Coins, All-Metal, Fe Coins, Jewellery, Foil, Pull Tab, Iron, Crowncap, Screwcap & Nail) & 10 user slots.
Timings –
Audio tone 1,2,4 & Multi-tone; customizable for conductivity or ferrous response. Variable by 30 adjustable steps.
Audio Type Normal, Long, Smooth & Pitch Hold.
Ground Balance Automatic ground compensation – advanced digital filtering. Ground settings Neutral & Difficult.
Ground Balance Type –
Trash Density (2) Low & High.
Pinpoint Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing.
Sensitivity Adjust Fully automatic with adjustable offset, manual setting 1 to 30.
Tune / Noise Cancel Manual & Automatic (11 channels)
Threshold Finer adjustment level from 0 to 50.
Target Volume Adjust Limit & Gain (1 to 30).
Battery 1600mAh NiMH or alkaline batteries.
Low battery alert Audio & visual indication.
Length 1060mm -1380mm (41.7″ – 54.3″).
Weight 1.6kg (3.5lbs) (ex. battery).
Warranty 3 years control box & coil.

E-Trac Manual

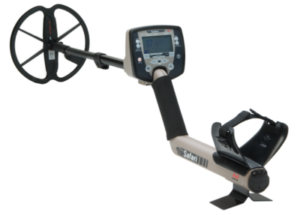

Safari Manual

The SAFARI is an easy to use mid-level coin & treasure detector with enhanced multi-frequency technology and discrimination. This detector is great for high performance treasure hunting.
FBS Technology

Four Pre-Programmed Detection Modes
Coin; Coin/Jewellery; Relic and All Metal. Each individual mode contains the optimum settings for identifying the characteristics of your preferred targets, allowing you to maximise your time in the field.

Pinpoint Mode
Pinpoint with audio and visual indicators for more accurate detection – press the pinpoint button and watch the Safari zone-in on the precise location of that precious target.

Trash Density
High ensures fewer false signals experienced in typical coin and relic environments so you don’t waste time digging for junk, while low is ideal for clean sites to make sure you don’t miss anything.

Target Volume Adjust
Adapts target signal volume to suit user preference.

Noise Cancel
Automatically selects the quietest, most stable channel for detecting.

Simple Interface
Intuitive menu interface for fast and easy access and adjustment.

Quality Design
Robust, well balanced design and long lower shaft for comfortable detecting over longer periods.

11″ Double-D Waterproof Coil
Ultra-lightweight 11″ Double-D waterproof coil combines high performance, great depth and sharp pinpointing.

SAFARI PRO-PACK

The Safari is also available in the Safari Pro Pack which includes:
Safari metal detector
RPG PH100R Headphones with adjustable headband and left and right channel volume controls
NiMH rechargeable Battery Pack
Mains battery charger (240v or 110v version depending on country)

FBS (Full Band Spectrum) simultaneously transmits, receives and analyses a full band of multiple frequencies. This provides the detector’s electronics with even more information about a target and the surrounding environment than is possible with single frequency or BBS technology. This has a number of advantages, including:

High sensitivity across a wide range of target types and sizes, so you only have to cover the ground once.
Automatic sensitivity and ground compensation, so maximum depth is achieved even in mineralised ground, including salt water beaches.
Extremely accurate multi-channel signal conversion to precisely separate target signals from ground signals for maximum detection depth and high resolution target identification.
Smartfind two dimensional discrimination, giving you maximum target information, so that targets can be discriminated by both ferrous and conductive properties simultaneously

Safari Manual

Application Coin, Relic, Jewellery & Beach
Technology FBS
Frequency/Transmission Multiple frequencies: 1.5 – 100kHz
Coil (standard) 11″ Double-D lightweight, waterproof.
Audio Output Internal speaker & 6.35mm (1/4″) headphone jack.
Headphones Supplied Optional accessory (included with Pro Pack).
Visual Display Large monochrome 70mm x 40mm (2.8″ x 1.5″) LCD with adjustable contrast.
Backlight –
Product ID 764
USB Connectivity –
Memory Press and hold power button to restore factory settings.
Depth Indication Depth gauge shows estimated depth of target.
Detect Modes 4 Preset (Coin, Coin/Jewellery, Relic & All Metal) & 4 programable.
Discrimination Notch Discrimination with 51 segment.
Timings –
Audio tone Conductive & ferrous audio response.
Audio Type –
Ground Balance Automatic ground compensation – advanced digital filtering. Linear -10 to 40 Discrimination options & custom select Discrimination.
Ground Balance Type –
Trash Density (2) Low & High.
Pinpoint Non-motion with audio and visual indicators.
Sensitivity Adjust Fully automatic & manual adjustable (0 to 20).
Tune / Noise Cancel Automatic.
Threshold Adjustable (0 to 40).
Target Volume Adjust Adjustable (0 to 20).
Battery 8xAA Alkaline or rechargeable NiMH/NiCad (NiMH included with Pro Pack).
Low battery alert Visual alert.
Length 1050mm – 1370mm (43″ – 54″).
Weight 1.65kg (3.6lbs) (ex. battery).
Warranty 3 years control box & coil.

Safari Manual

Equinox 800 Manual

Equally adaptable for all target types and ground conditions.
SIMULTANEOUS MULTI-FREQUENCY
True intelligent Simultaneous Multi-Frequency for maximum performance, plus a wide range of single frequencies.
Detect Modes
Equally adaptable for all target types and ground conditions:
Park
Field
Beach
Gold
Fast & Accurate Target ID
Fast recovery speed with accurate Target ID ensures you won’t miss any valuable targets amongst the trash.
8 Custom Search Profiles
Each Detect Mode features 2 custom Search Profiles so you can save your favourite settings in each mode.
Wireless Audio
Experience ultra-fast wireless audio with the WM 08, or use fast aptX™ Low Latency / Bluetooth headphones.
Sleek & Lightweight
Rugged and lightweight construction allows you to enjoy long detecting sessions in any environment.
Waterproof
EQUINOX is fully submersible, ideal for detecting at the beach and in rivers, streams and lakes. (3m / 10-feet).
User Interface
The clear LCD features large Target ID numbers so you can see your target ID at a glance. All of the information you need when detecting is right there in front of you.
Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.
Advanced Settings
Gain even more control of your detector audio with Advanced Settings; you decide how much target information you hear.
Multi-IQ
Multi-IQ Simultaneous Multi-Frequency
Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With EQUINOX you can operate across the full spectrum of frequencies simultaneously for maximum results.

The EQUINOX 800 offers the choice of 5 single frequencies. Both models cover a much broader range of targets when operating in Multi than any one single frequency can, however, if excessive ground noise is present in a particular detecting location, switching into a single frequency can help to eliminate this.

Equinox 800 Manual

Detect Modes Park | Beach | Field | Gold
Custom Search Profiles 8 (2 per Detect Mode)
User Profile Button Yes
Operating Frequencies (kHz) Multi, 5, 10, 15, 20, 40
Noise Cancel Auto | Manual (-9 to 9)
Ground Balance Auto | Manual
Sensitivity 1–25
Target Volume 0–25
Threshold Level 0–25
Threshold Pitch 0–25
Target Identification 50 segment notch discrimination | Ferrous: -9 – 0 | Non-ferrous: 1 – 40
Target Tones 1, 2, 5, 50
Tone Break Ferrous | Non-ferrous
Tone Pitch Ferrous | Non-ferrous
Tone Volume Ferrous | Non-ferrous
Depth Indicator 5 levels
Length 1440 mm (56.7″)
Weight 1.34 kg (2.96 lbs)
Standard Coil 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10′)
Audio Output • In-built loudspeaker • 3.5mm (1/8″) headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible
Headphones (included) Bluetooth and aptX™ Low Latency headphones (non waterproof)
WM 08 (included) Yes
Display Monochrome LCD with backlight
LCD Backlight Low | Medium | High | Off
Battery In-built rechargeable Lithium-ion battery
Battery Runtime Approx. 12 hours
Waterproof Waterproof to 3m/10-feet
Key Technologies Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency
Other Accessories USB Charging cable (1.5A), Multi Language Screen protectors
Software Upgradeable Yes, via USB connection (Windows and OSX)
Warranty 3 years control box and coil

Equinox 800 Manual

X-TERRA 705 Manual

The Minelab X-TERRA 705 Metal Detector is an all-purpose coin, treasure, and gold prospecting detector designed for use in the most challenging of environments. It’s lightweight, balanced construction makes detecting for longer periods of time more enjoyable, and the detector runs on just four easily-replaceable AA batteries.

With a standard 7.5kHz waterproof coil and compatibility with all 7 X-TERRA series low, mid and high-frequency coils, this detector’s flexibility makes it suitable for treasure-hunting and even gold prospecting in a variety of conditions. It also features automatic ground balancing to minimize interference and false signals.

X-TERRA 705 Manual

X-TERRA 705 Manual

Gold Monster 1000 Manual

The GOLD MONSTER 1000 turns beginners into experts with fully automatic operation in an easy-to-use, high performance detector.
Fully automatic operation
Automatic Noise Cancel
Auto Ground Balance
Automatic Sensitivity
45 kHz VLF & 24-bit signal processor
This primary combination greatly boosts sensitivity to gold beyond that of other single frequency VLF detectors over a wide range of nugget sizes, without introducing excess noise and false signals.
Easy-to-Use Controls
Gold Chance Indicator
Detect Modes: Gold (Iron Reject) and Deep All-Metal
Sensitivity Options: Manual Sensitivity, Auto, Auto+
Adjustable Volume: 6 volume levels
Adaptable Form
Wide ground coverage
Confined space detecting
Universal shaft adaptability
Waterproof Coil
Waterproof coil (to 1m/3″) and Rain proof control box.

Gold Monster 1000 Manual

Key Technology Ultra-wide dynamic range 45kHz VLF
Detect Modes Gold (Iron reject), Deep All-Metal
Discrimination Gold Chance Indicator (high/low)
Ground Balance Automatic (Easy-Trak)
Noise Cancel Automatic (On start-up)
Sensitivity Adjust Manual (1–10), Auto (11), Auto+ (12)
Volume Adjust Manual 1–6
Visual Display Monochrome LCD
Detector Length 1382mm–944mm (54.4″–37.2″)
Detector Weight (with10″ × 6″ coil) 1.33kg (2.94lbs) (excluding battery)
Audio Output Internal speaker or headphones 3.5mm (1/8″)
Coils (standard) GM 10 (10″ x 6″ Double-D), GM 05 (5″ Double‑D)
Waterproof/Splashproof Coils waterproof to 1m (3′), Control box rain/splash-proof
Battery options Li-Ion (included), 8 × AA Batteries (not included)
Warranty 2 years control box & coil

Gold Monster 1000 Manual

GPZ 7000 Manual

With extreme depth and maximum sensitivity on all gold, the innovative GPZ 7000 gold detector takes you to the next level of gold detection.
ZVT Technology
So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before!
Super-D Coil Technology
The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.
Precision Ground Balance
Most gold is buried in the mineralised ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.
Enhanced Noise Immunity
The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference!
Simple Menu System
The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold!
Wireless Audio Freedom
Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.
GPS Locating & PC Mapping
See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.
Waterproof Coil
The GPZ 14 coil is waterproof and submersible to a depth of 1 m (3 ft). You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.

ZVT
ZVT (Zero Voltage Transmission) creates ultra‑constant high-power opposite polarity magnetic fields, increasing gold sensitivity. This innovative technology detects gold nuggets at extreme depths.
ZVT technology goes to the NEXT LEVEL for all serious gold prospectors, providing substantially improved depth. No longer will you be limited to using either sine wave continuous VLF transmission detectors, that struggle in mineralised ground, or square wave PI transmission detectors, that can be insensitive to varying gold sizes and compositions.
Minelab’s new flagship gold detector, the GPZ 7000 is equipped with exclusive Zero Voltage Transmission (ZVT) technology, developed by Bruce Candy, and state-of-the-art features, the GPZ 7000 offers the deepest ground penetration and represents the most significant advancement in gold detecting technologies in years. This revolutionary gold detector will discover the deepest gold in mineralised ground and has the highest sensitivity available to detect even the smallest traces of gold.

GPZ 7000 Manual

Application Gold Prospecting (Waterproof coil to 1m/3ft)
Technology ZVT
Frequency/Transmission Zero Voltage Transmission (ZVT)
Coil (standard) 14″ x 13″ Super‑D Configuration with skidplate (waterproof to 1 m/3 ft)
Audio Output 6.3 mm (¼”) non waterproof socket, Wi‑Stream wireless signal transmission
Headphones Supplied KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof)
Visual Display Full colour LCD (320 x 240 pixels)
Backlight Yes
Product ID 252529
USB Connectivity USB interface for XChange 2 PC software
Memory Yes
Depth Indication –
Detect Modes Gold Mode (High Yield, General, Extra Deep) Ground Type (Normal, Difficult, Severe)
Discrimination All Metal
Timings –
Audio tone 1-100
Audio Type –
Ground Balance Auto and Manual (Quick‑Trak trigger button)
Ground Balance Type Auto and Manual (Quick‑Trak trigger button)
Trash Density –
Pinpoint –
Sensitivity Adjust Level (1-20)
Tune / Noise Cancel Auto and Manual (256 channels)
Threshold Level (1-50) Pitch (1-100)
Target Volume Adjust Range (1-20) Limit (1-20)
Battery Li-Ion Rechargeable Pack (7.2V DC, 72Wh)
Low battery alert Yes
Length Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”)
Weight 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery)
Warranty 3 years control box & coil

Gold Monster 7000 Manual

GPX 5000 Manual

The Minelab GPX 5000 Metal Detector is a high-performance gold prospecting detector with advanced features and industry-leading technology that make it ideal for use in the most challenging environments by beginners and professionals alike. Featuring eight timings and six preset search modes, the GPX 5000 is capable of finding sub-gram gold, massive deposits, and everything else in between.

The detector includes a lightweight, rechargeable Li-ion battery (and can optionally run on 8 AA-batteries). With automatic ground balance, adjustable iron rejection, motion control, and two standard coils—one 11” Double-D elliptical and one 11” Monoloop—the GPX 5000 has the versatility to be the detector you need, no matter the terrain.

GPX 5000 Manual

GPX 5000 Manual
